Custom Cabinet Fabrication in Bozeman, MT | Plywood boxes, dovetails and dado joints built in our shop
Our team at Custom Cabinets Bozeman MT fabricates custom cabinets in our shop to the exact drawings for your room: 3/4-inch plywood boxes with dado joints, dovetailed drawers with captured bottoms, and doors built from selected stock. Nothing comes from a catalogue in fixed sizes.
Free design consultationTell us about the room. We call back to book a measure.
Custom Cabinet Fabrication in and around Bozeman MT
Fabrication is where drawings become furniture. We cut, join and finish every part in our shop, where the tolerances are tight and the conditions are controlled, then deliver cabinets ready to install. Building to order means every cabinet is the width the room needs.
Our standard fabrication specification
- Box sides
- 3/4-inch plywood, TSCA Title VI compliant
- Drawer boxes
- Dovetailed, 1/2 to 5/8-inch sides, 1/4-inch bottoms
- Joinery
- Dado and rabbet joints, glued and screwed
- Finish
- Catalyzed topcoat on faces and interiors
Fabrication faults that show up later
| What goes wrong | Why it happens | What we do about it |
|---|---|---|
| Box racks out of square | Butt joints and staples. | Dado joints, glue and screws. |
| Door colours clash | Boards not sorted. | Material sorted for colour before cutting. |
| Drawer bottoms drop | Thin stapled bottoms. | Captured bottoms in a groove. |
Shop details that make the difference
Material selection
We sort boards for colour and grain before cutting doors, so a run looks consistent.
Grain matching
Drawer fronts in a stack are cut in sequence so grain flows up the stack.
Finishing before install
Cabinets are finished and cured in the shop, not sprayed in your home.
Test assembly
Complex runs are dry-fitted in the shop before delivery.

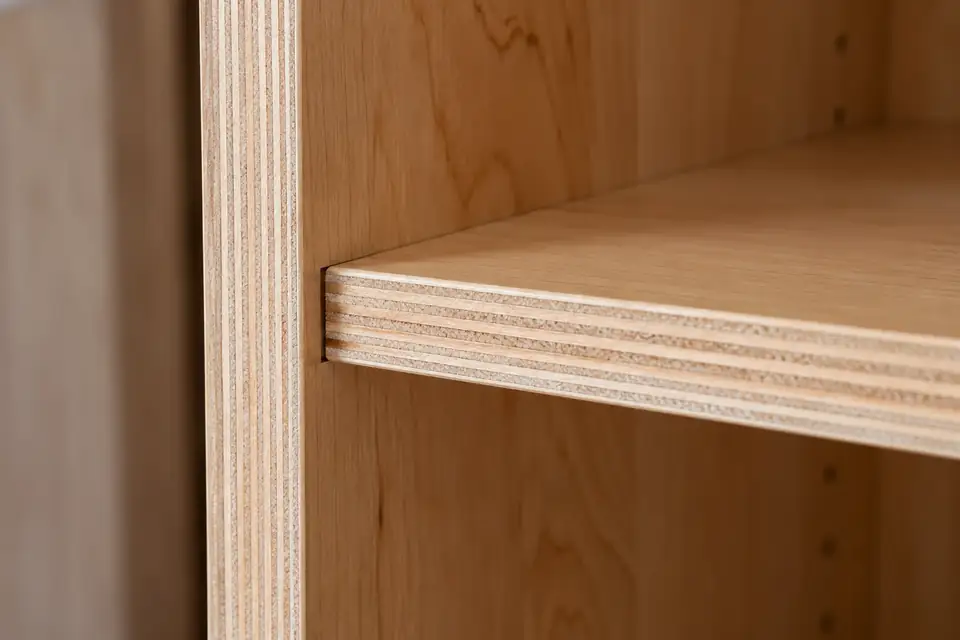

Dado joints hold the box square
A dado is a groove cut into the side panel that the bottom or shelf sits in. It gives a large glue surface and locates the part exactly, so the box goes together square and stays that way. Screws pull the joint tight while the glue cures.
Cheaper boxes rely on butt joints held by staples or cam fittings. They work until the box is racked during delivery or loaded heavily. A dadoed plywood box shrugs off both.
From drawing to finished cabinet
Cut list
Drawings become a cut list for every part.
Machine
Panels are cut, grooved and drilled.
Assemble
Boxes, drawers and doors are glued up square.
Finish
Parts are sanded, sprayed and cured.
How we build a cabinet box
- 3/4-inch cabinet-grade plywood, TSCA Title VI compliant.
- Dado joints for bottoms and fixed shelves.
- Glue-and-screw assembly, square and rigid.
- Finished interiors, not raw board.
Mass-produced boxes compared with ours
| The usual approach | How we do it |
|---|---|
| Particleboard boxes held by cam locks. | Plywood boxes with dado joints, glued and screwed. |
| Fixed widths in 3-inch steps. | Any width, to the fraction of an inch. |
| Stapled drawers with thin bottoms. | Dovetailed drawers with captured 1/4-inch bottoms. |
| Raw interiors. | Finished interiors that clean easily. |
Changes after cutting cost more
Once parts are cut, changes mean new material. That is why we take care over sign-off before the shop starts.
Hardware choices matter here too. Runners and hinges are drilled for in the shop, so the exact models must be fixed before machining starts rather than swapped at install.
Montana wood and shop practice
Montana is timber country, and Douglas fir, lodgepole pine and western larch grow on the mountains around Bozeman. Most fine cabinetry hardwoods, such as white oak, walnut and cherry, come from farther east, while western alder comes from the Pacific Northwest.
We can build with local fir or reclaimed Montana barn wood for projects that want a regional connection. Local softwoods need careful drying and finishing because they are softer and move more than hardwoods.
Reclaimed barn wood from Montana ranches carries old nails, dirt and sometimes insects, so it is cleaned, de-nailed and dried before machining.
What affects fabrication cost
Fabrication cost follows material and labour. These are the main factors.
Species and sheet goods
Premium hardwoods and veneers cost more.
Drawer count
Each drawer adds a box, runners and fitting.
Door complexity
Inset and detailed profiles take more machining.
Building in a Bozeman shop
Wood is built to the moisture conditions it will live in. We store lumber and sheet goods in heated conditions and let them settle before machining, so parts do not move after they are cut. Hardwood for doors is checked for moisture content before it is used.
Finishes are applied and cured in controlled temperatures, which a winter job site cannot provide. That is a big reason we finish in the shop.
Custom Cabinet Fabrication: terms we use
- Dado
- A flat-bottomed groove cut across a panel that another panel sits in. Dados locate cabinet bottoms and fixed shelves and give a strong glue joint.
- Rabbet
- A step cut along the edge of a panel. Cabinet backs are often set into rabbets so the back sits flush and the box stays square.
- Cut list
- The list of every part in a project with its exact dimensions, material and grain direction. It turns drawings into instructions for the saw.
- Edge banding
- A thin strip of wood or laminate applied to the exposed edge of plywood or panel stock to hide the plies and protect the edge.
- Glue-up
- The stage where parts are glued and clamped together. Getting a box square at glue-up determines whether doors hang true later.
What we need to start fabrication
- Approved drawings.
- Final appliance specs.
- Chosen species, finish and door style.
- Hardware selections.

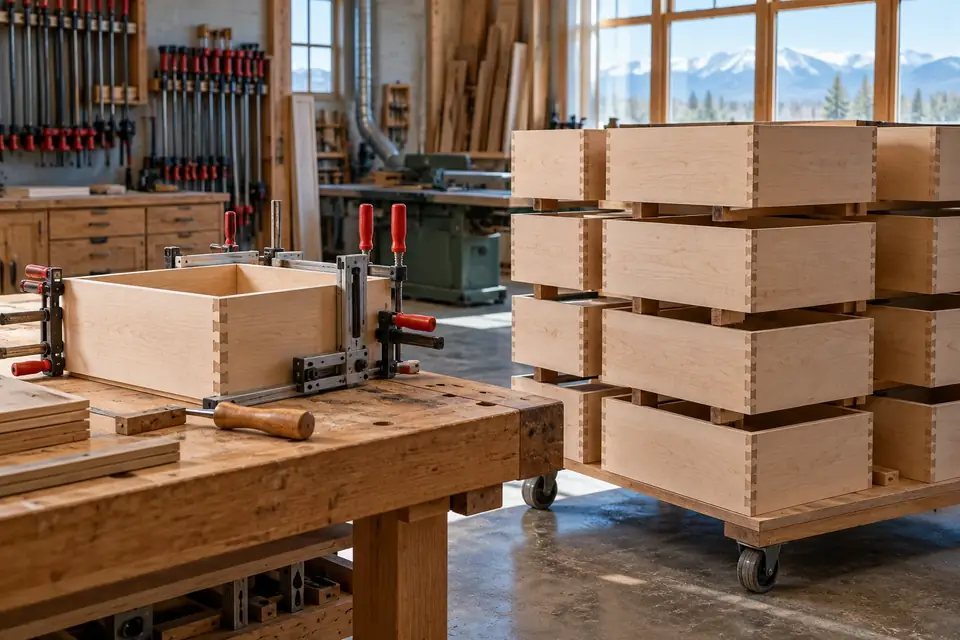

Dovetailed drawers
A dovetail joint locks the drawer front and sides together mechanically, so the joint cannot pull apart even if the glue fails. Combined with a bottom captured on four sides, it makes a drawer box that lasts as long as the house.
Every drawer box is built to its own opening, so the gap between drawer and cabinet side stays within the tolerance the runner needs. That precision is what makes a drawer glide silently. Runners that are forced into a slightly wrong opening bind, wear and lose their soft-close action within a few years.
Questions about custom cabinet fabrication
What wood is used for custom cabinet boxes?
We build boxes from 3/4-inch cabinet-grade plywood that meets the TSCA Title VI formaldehyde standard. Plywood holds screws well, resists water better than particleboard and stays stable. Doors and face frames use solid hardwood or MDF, depending on the finish.
Does custom cabinet fabrication in Gallatin Gateway need a permit?
No permit is needed for the cabinets, which are built in our shop and installed as finish work. Gallatin Gateway is unincorporated and under state jurisdiction, so any plumbing or electrical work for the project would need state permits.
Why are dovetail drawers better?
Dovetails interlock mechanically, so the drawer front cannot pull away from the sides even under heavy loads. Combined with a captured bottom, they make drawers far stronger than stapled or glued boxes.
Can custom cabinets be any size?
Yes. We build to the width, height and depth your room needs, to the fraction of an inch. That removes the fillers stock cabinets need.
Are your cabinets finished in the shop?
Yes. We finish cabinets in controlled conditions in the shop, so the coating cures properly. Only small touch-ups happen on site.
What is a dado joint?
A dado is a groove cut in one panel that another panel sits in. It locates the part exactly and gives a strong glue joint. We use dados for cabinet bottoms and fixed shelves.
How long does cabinet fabrication take?
Shop time depends on project size and our schedule. A kitchen typically takes several weeks after final approval, including finishing and cure time.
Can you build with Montana wood?
Yes. Douglas fir and reclaimed local barn wood suit rustic and mountain styles. We dry and finish them carefully because softwoods move more than hardwoods.
Do you use particleboard at all?
Not for cabinet boxes. We use plywood for boxes and MDF for some painted door panels, where its stability is an advantage.
Can I visit the shop to see my cabinets being built?
Ask us when we book the build. Seeing sample doors and finished parts before delivery can be useful for final finish decisions. Shop visits depend on safety and schedule.
